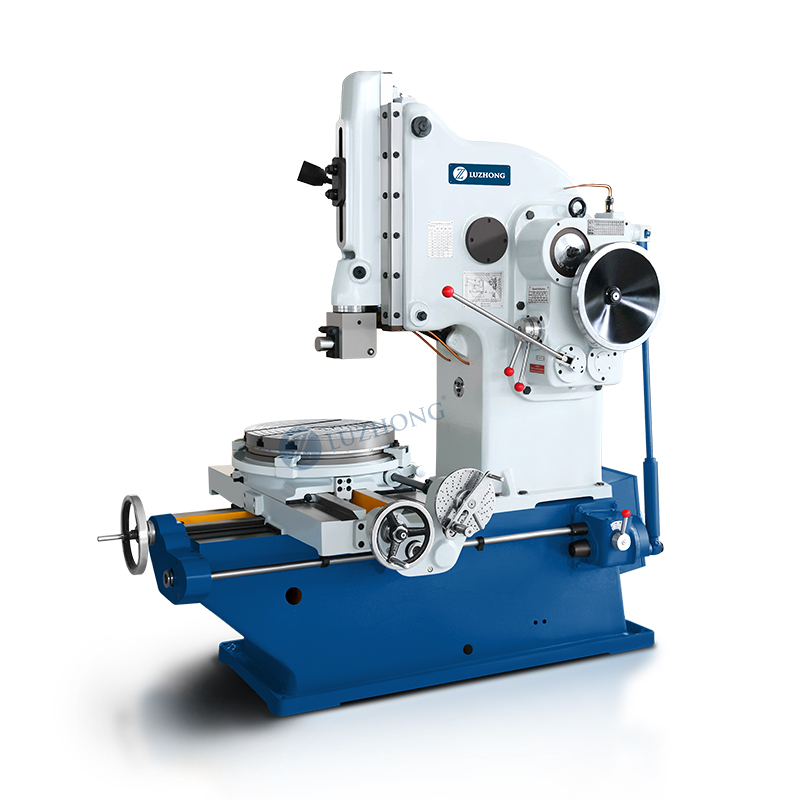

B5040 Vertical Slotting Machine

Share

The main performance characteristics

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Application

This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other  within the scope of etc. work matter,,

Enterprise suitable for single or small batch production.

Product main technical parameters:

Specification

Unit

B5040

Max.ram slotting length

mm

400

Ram moving frequency per minute

times/min

20-80

Ram tilt angle

°

0-8

Ram vertical adjustment distance

mm

315

Distance from cutter head to column surface

mm

600

Distance from ram lower end to table surface

mm

690

Table Diameter

mm

630

Table longitudinal travel

mm

620

Table cross travel

mm

560

Table rotation angle

°

360

Table feed range (longitudinal and cross)

mm

0.08-1.21

Table rotary feed range

mm

0.052-0.783

Main motor power

kw

4

Rapid traverse motor power

r/min

-

Machine weight

kg

3700

Overall dimension

mm

2290x1525x2485
