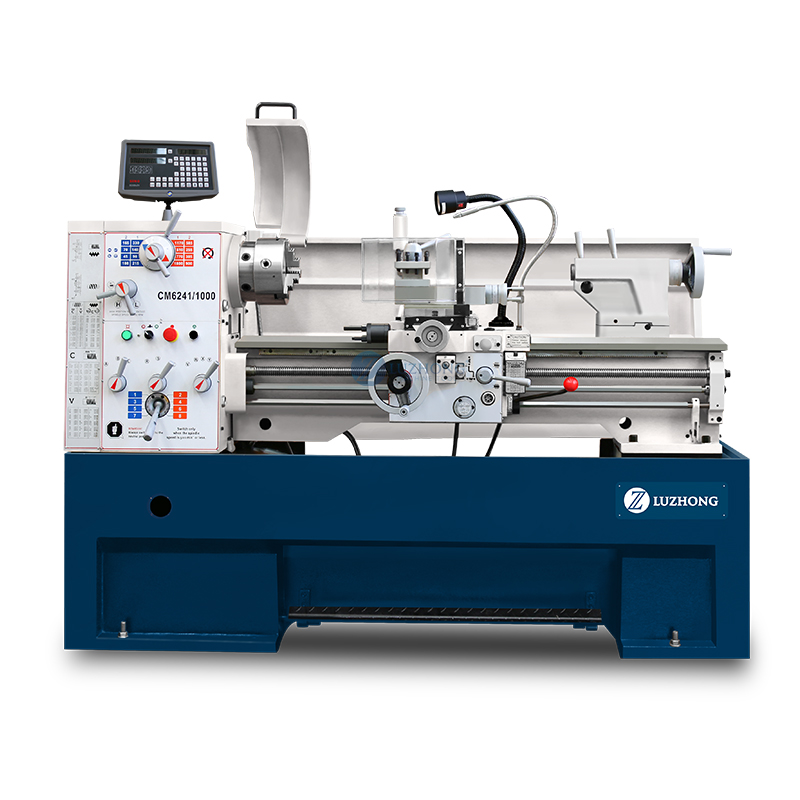

Product main technical specifications:
SPECIFICATION | CM6241 | CM6241V |
Swing over bed | 410mm(16") | 410mm(16") |
Swing over cross slide | 255mm(10") | 255mm(10") |
Swing in gap | 580(23") | 580(23") |
Length of gap | 250(10") | 250(10") |
Distance between centers | 1000mm(40") /1500mm(60’’) | 1000mm(40") /1500mm(60’’) |
Center height | 205(10’’) | 205(10’’) |
Width of bed | 250(10") | 250(10") |
Spindle nose | D1-6 | D1-6 |
Spindle bore | 52mm(2") | 52mm(2") |
Taper of spindle bore | No.6Morse | No.6Morse |
Range of spindle speed | 16 changes 45-1800r/min | 30-550r/min or 550-3000r/min |
Max.travel of compound rest | 140mm(5-1/2") | 140mm(5-1/2") |
Max.travel of cross slide | 210mm(8-1/4") | 210mm(8-1/4") |
Leadscrew pitch | 4T.P.I. | 4T.P.I. |
Max.Section of tool | 20×20mm(13/16") | 20×20mm(13/16") |
Longitudinal feeds range | 0.05-1.7mm/rev(0.002"-0.067"/rev) | 0.05-1.7mm/rev(0.002"-0.067"/rev) |
Cross oeeds range | 0.025-0.85mm(0.001"-0.0335"/rev) | 0.025-0.85mm(0.001"-0.0335"/rev) |
Metric threads range | 39kinds 0.2-14mm | 39kinds 0.2-14mm |
Inch threads range | 45kinds 2-72T.P.I | 45kinds 2-72T.P.I |
Diametrical pitches range | 21kinds 44D.P. | 21kinds 44D.P. |
Module pitches range | 18kinds 0.3-3.5M.P. | 18kinds 0.3-3.5M.P. |
Dia.of tailstock sleeve | 50mm(2") | 50mm(2") |
Travel of tailstock sleeve | 120mm(4-3/4") | 120mm(4-3/4") |
Morse taper of tailstock sleeve | No.4 Morse | No.4 Morse |
Cross adjustock | ±13mm(±1/2") | ±13mm(±1/2") |
Power of main motor | 2.8/3.3kw(3.8/4.5HP)3PH | 2.8/3.3kw(3.8/4.5HP)3PH |
Power of coolant pump | 0.1KW(1/8HP),3PH | 0.1KW(1/8HP),3PH |
Overall dimension(L×W×H) | 1940/244×850×1300mm | 1940/244×850×1300mm |
Packing size(L×W×H) | 2060/2560×900×1640mm | 2060/2560×900×1640mm |
Net weight/Gross weight | 1160/1350 1340/1565kg | 1160/1350 1340/1565kg |
