Product main technical specifications：

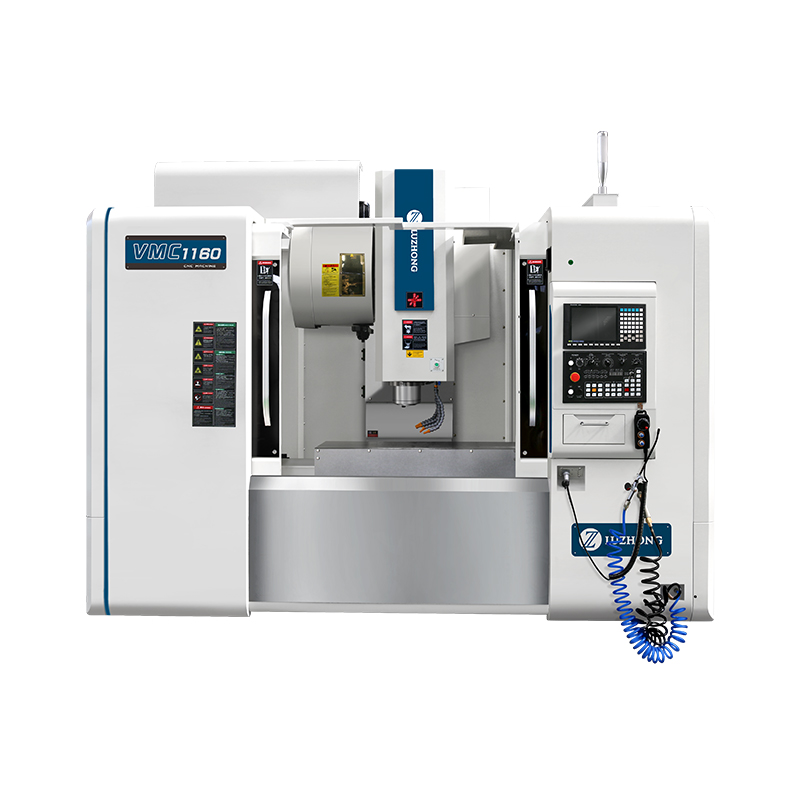

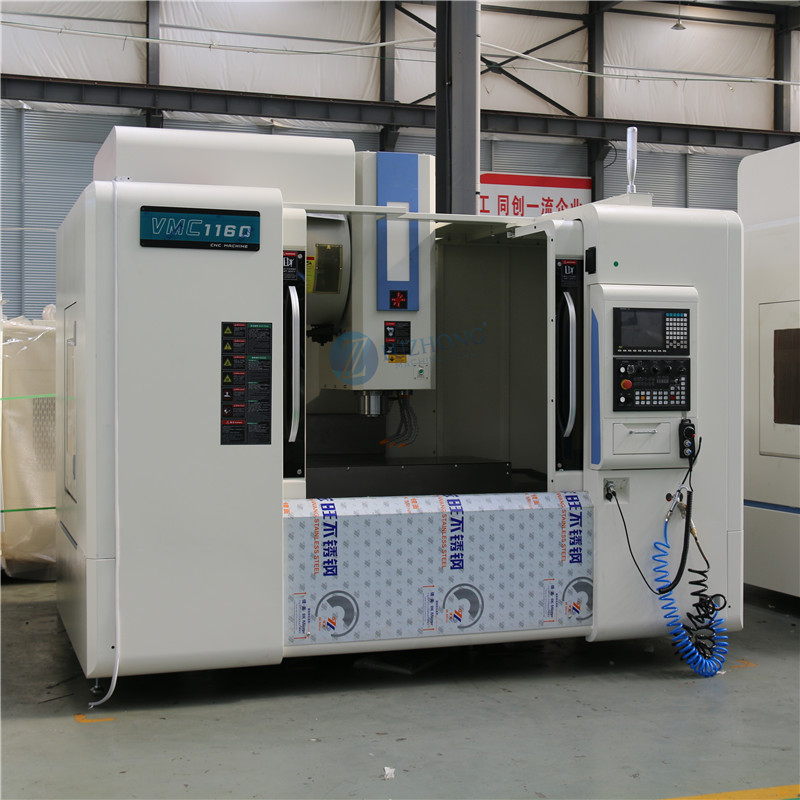

SPECIFICATIONS | Units | VMC1160 |
Table size | mm | 1200*600 |
X axis travel | mm | 1100 |
Y axis travel | mm | 600 |
Z axis travel | mm | 600 |
Max. worktable load | kg | 1000 |
T slot(number-width*pitch) | - | 5-18*125 |
Max. spindle speed | rpm | 8000 |
Spindle taper | BT | BT40 |
Main motor power | kw | 11 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 |
Cutting feed speed | mm/min | 1-8000 |
Guide rail type | - | Linear rail |
Distance from spindle axis to column surface | mm | 650 |
Distance between spindle nose and table surface | mm | 100-700 |
Positioning accuracy | mm | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 |
Tool magazine | - | Arm 24 |
Max. tool diameter | mm | 78/120 |
Max. tool weight | kg | 8 |
Machine weight | kg | 7000 |
Overall dimension | mm | 3400*2500*2960 |
