The main performance characteristics：
1.Saw frame travels across solid dual-column guides
2.Rigid, adjustable saw blade guides prevent lateral escape of the saw blade and ensure maximum angular accuracy
3.Ideally positioned control panel within comfortable reach on top of the saw frame
4.At the end of each sawing cycle, the saw blade frame will automatically return to the home position
5.Tthrottle valve allows infinitely variable saw frame feed
6.Two cutting speeds for a wide spectrum of materials and workpiece diameters
7.Manually adjustable workpiece clamping and linear stop
8.Coolant system
Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
Product main technical parameters:

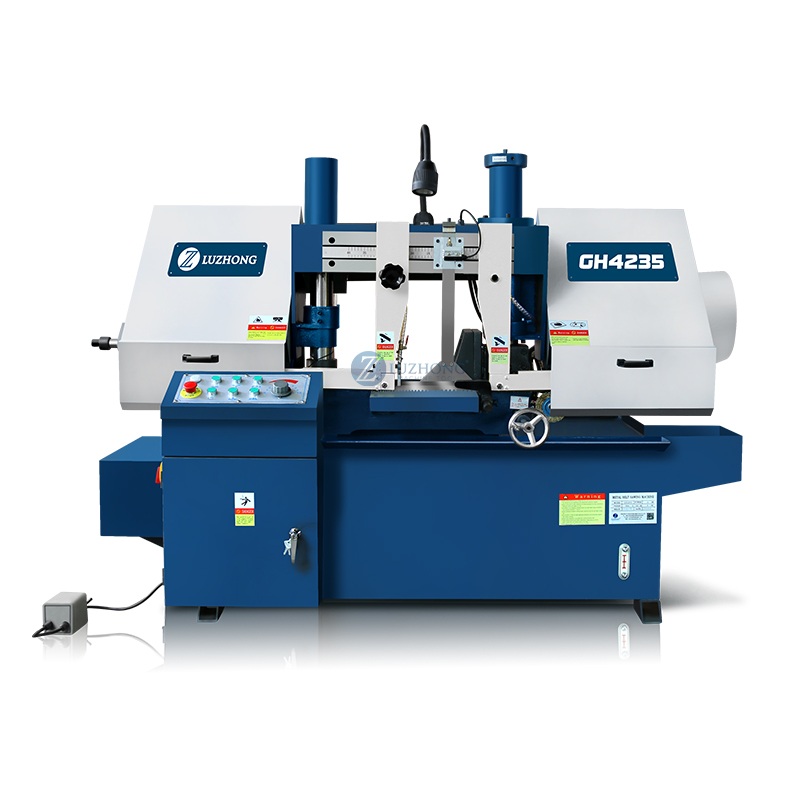

Model | Units | GH4235 | |
Cutting capability | Circular | mm | 350 |
Rectangular | mm | 350x350 | |
Blade speed | m/min | 27、45、69 | |
Blade size | mm | 4115*34*1.1 | |
Main motor power | kw | 3 | |
Hydraulic motor power | kw | 0.55 | |
Coolant pump（w） | w | 40 | |
Work clamping method | - | Hydraulic vise | |
Machine weight | kg | 1000 | |
Overall dimension | mm | 1980*1110*1600 | |
Package Size | mm | 2100*1150*1650 | |
