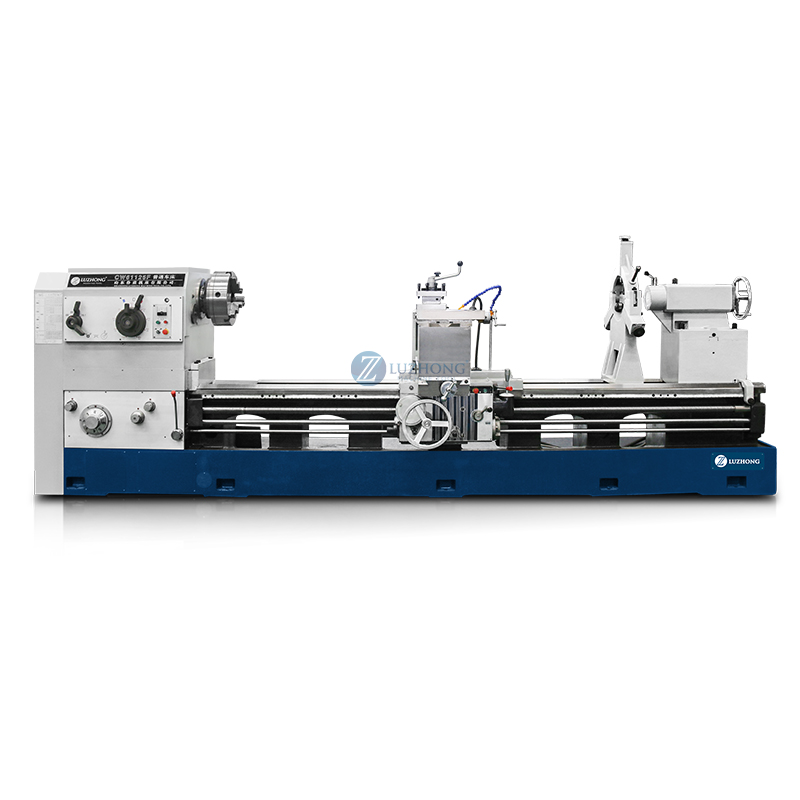

CW62125F Heavy Duty Lathe Machine

SPECIFICATIONS

Units

CW62125F/3000

Swing over bed

mm

1250

Swing over gap

mm

1450

Swing over cross slide

mm

680

Distance between centers

mm

3000

Guideway width

mm

600

Max. load capacity

T

4

Spindle bore

mm

130

Spindle bore taper

-

Metric φ120/MT5

Spindle nose type

-

C11

Spindle speed steps

-

FWD. 18 steps

Spindle speed range

rpm

5.4-720

Chuck

mm

φ400 3-jaw manual

Turret/tool post

-

Manual turret 4 position

Tool shank size

mm

32*32

X axis travel

mm

420

Z axis travel

mm

2750

X axis feed grade/range

mm/r

64/0.05-12.15

Z axis feed grade/range

mm/r

64/0.1-24.3

X axis rapid traverse

mm/min

2300

Z axis rapid traverse

mm/min

4000

Metric thread grade/range

mm

50/1-240

Inch thread grade/range

T.P.I

26/14-1

Module thread grade/range

53 kinds 0.5-120

DP thread grade/range:

24 kinds 28-1 DP

Tailstock quill diameter

mm

φ120

Tailstock quill taper

-

MT6

Tailstock quill travel

mm

250

Main spindle motor

kW

11

Rapid traverse motor

kW

1.1

Coolant pump motor

kW

0.125

Net weight

T

6.4

Overall dimension（W*H）

mm

1750*1750

Overall dimension（L）

mm

6400
