Specification：

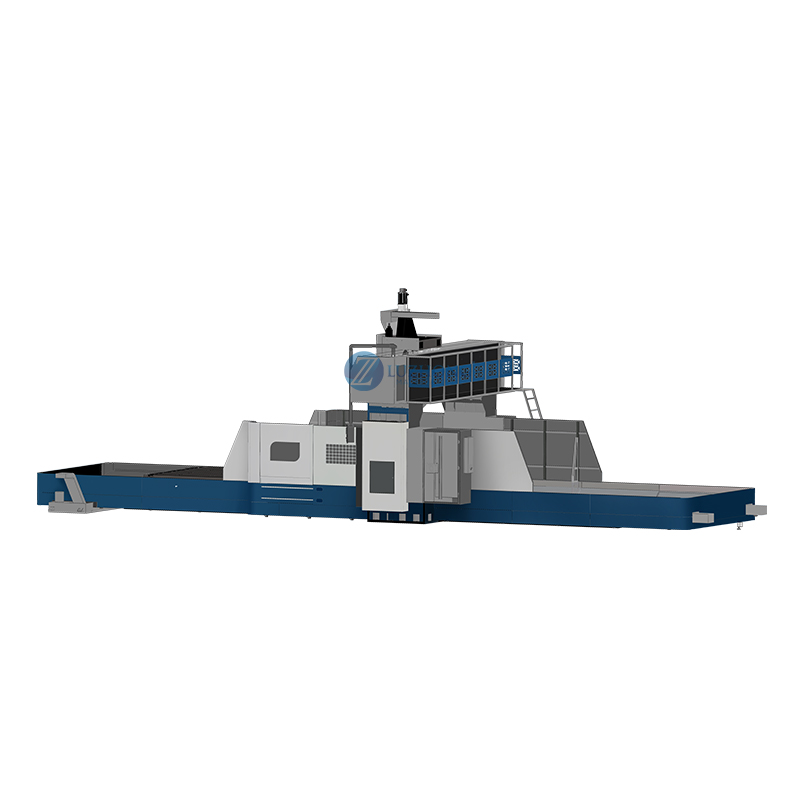

SPECIFICATIONS | Units | GMC5037 |
Table size（W*L） | mm | 2500x5040 |
X axis travel | mm | 5000 |
Y axis travel | mm | 3700 |
Z axis travel | mm | 1250 |
Gantry width/passing height | mm | W：3700 / H：1780 |
Table load | t | 20 |
Distance between spindle nose and table surface | mm | 350-1600 |
T slot(number-width*pitch) | - | Middle 11-28*200, Two side each 1-28*180 |
Spindle taper | - | BT50/200 |
Spindle speed | r/min | 6000 |
Rapid traverse speed | m/min | 10 |
Cutting feed speed | m/min | 6 |
Main motor power | kw | 18.5 |
Tool magazine | Arm 30 | |
Positioning accuracy | mm | X/Y ±0.0075 Z ±0.015 |
Repeat positioning accuracy | mm | ±0.005 |
Overall dimension | mm | 15440x7870x6470 |
Machine weight(about) | t | 80 |
