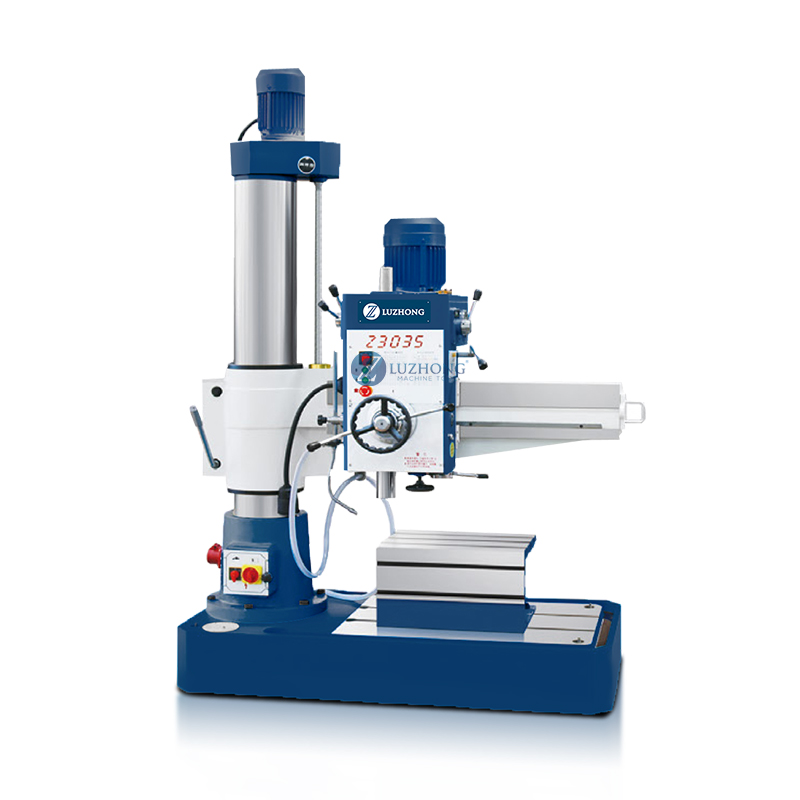

Z3035X10 Radial Drilling Machine

Specifications

Z3035×10

Max.drilling diameter(mm)

35

Distance from spindle nose to table surface(mm)

300~1000

Distance from spindle axis to column surface (mm)

260~1200

Spindle travel(mm)

200

Spindle taper

MT4

Spindle speed range (rpm)

75-1220

Spindle speed steps

6

Spindle feed range (mm/r)

0.10/0.16/0.22

Spindle feed steps

3

Main motor power (kw)

2.2

Overall dimension(mm)

1500×750×2150

N/W(Kg)

1200
