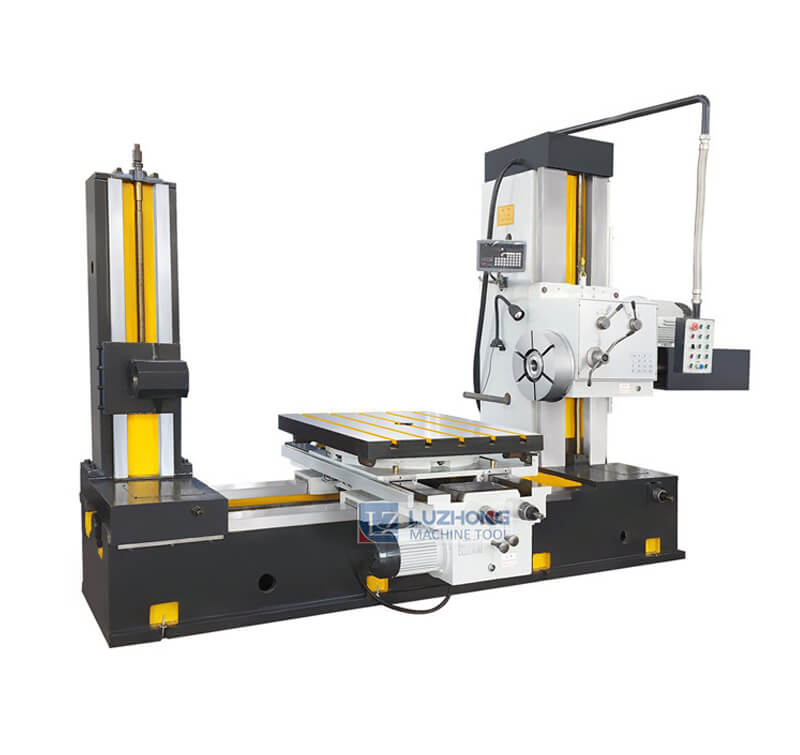

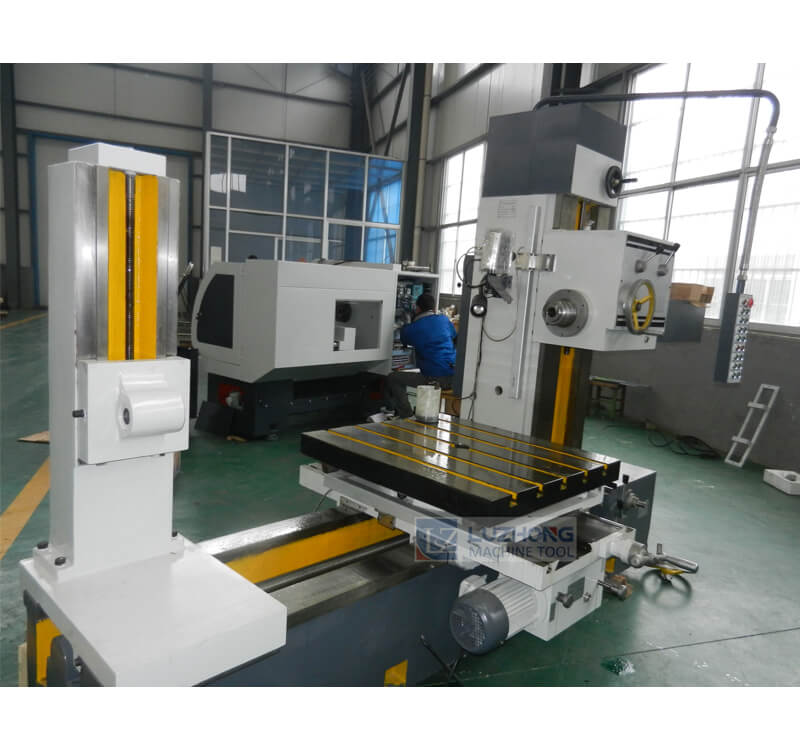

T611 Boring Machine

Share

Product main features and uses

1. Appearance beautiful generous overall layout of the overall layout.

2. The machine body, the upright post and the sliding block are all made of rectangular guide rail, and the stability is good.

3. Guide rail to take automatic quenching, high wear resistance.

4. Digital synchronous display, intuitive and accurate, can improve the work efficiency.

5. After the tailstock is optional

Product application:

1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.

2. Drilling, boring and hinge hole can be carried out on the machine tool.

Product main technical specification:

Specifications

Units

T611

Max. load of worktable

kg

3000

Spindle speed step


9 step

Spindle speed range

rpm

20-450

Longitudinal feed step


6 steps

Longitudinal and transverse feed range

mm/min

6-250

Worktable rapid feed speed

mm/min

2500

Headstock lifting and lowering feed speed

 mm/min

50-720

Spindle diameter

mm

110

Quill travel

mm

400

Table size

Mm2

1130×930

Longitudinal travel of worktable

mm

1400(without tailstock)

transverse travel of worktable

mm

1000

Vertical travel of headstock

mm

900

Spindle taper


MT6#

Spindle motor power

KW

5.5/7.5

Longitudinal and transverse motor power

KW

2.2

Headstock lifting and lowering motor power

KW

1.5

Overall dimension

mm

4800×2000×2500
