Product configuration:
Standard accessories :
Fanuc 0I Mate control system
Lubricating system
Full guard
Manual chip conveyor
Optional accessories :
Control system :KND,GSK,Siemens etc.
Chain type automatic chip conveyor

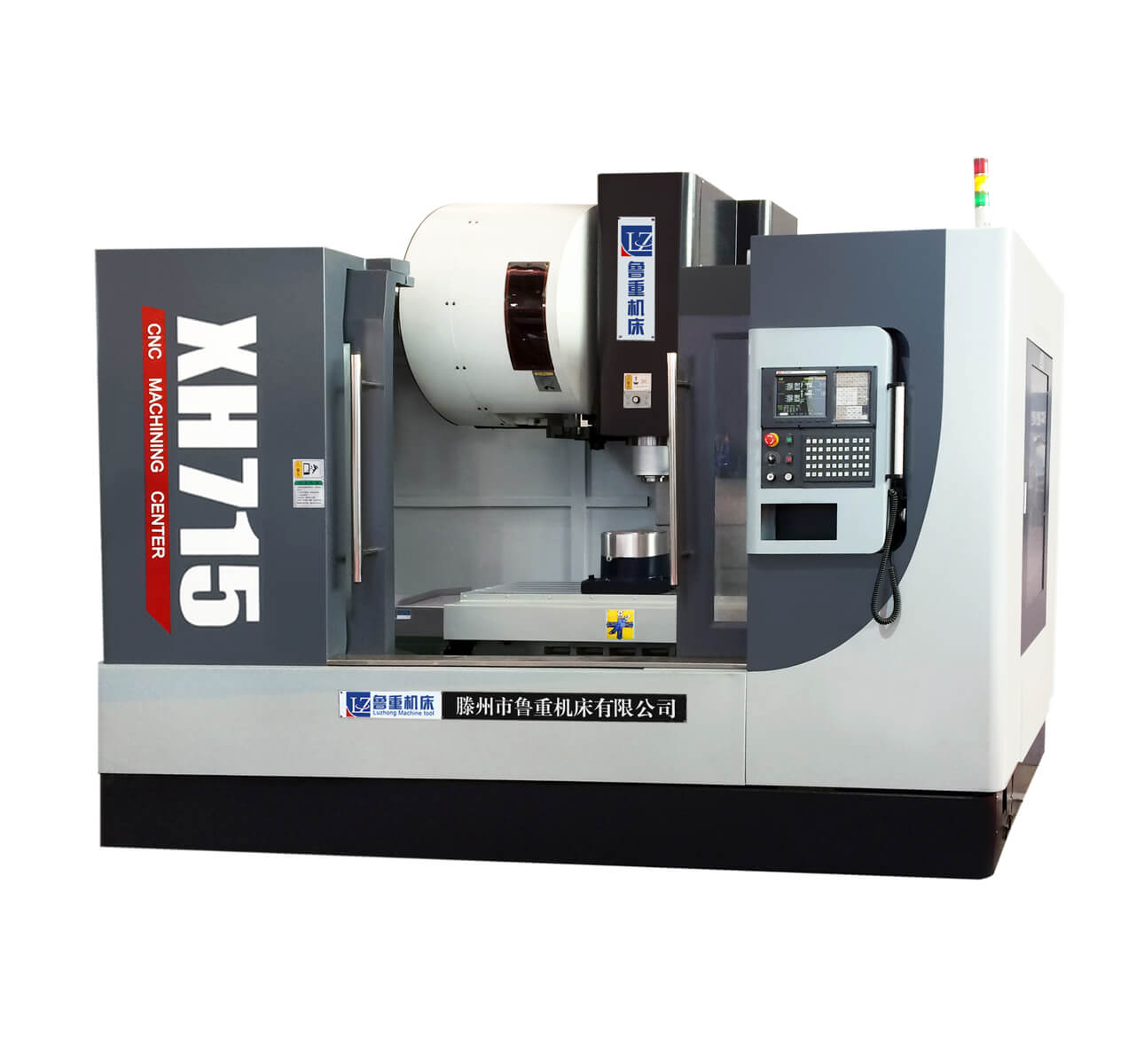

Product main technical specifications:
| specifications | unit | XH715 | |
| Table size | mm | 1600X500 | |
| Table maximum load | kg | 900 | |
| T slot(number-width-pitch) | 5-18-80 | ||
| X axis travel | mm | 1000 | |
| Y axis travel | mm | 500 | |
| Z axis travel | mm | 580 | |
| Distance between spindlecenter and column surface | mm | 545 | |
| Distance between spindle endface and worktable surface | mm | 140-720/270-850 | 170-750/300-880 |
| X/Y axis max.rapid traverse | m/min | 15 | |
| Z axis max.rapid traverse | m/min | 12 | |
| Cutting feed | mm/min | 1-5000 | |
| Spindle speed | r/min | 80-3500 | 80-6000 |
| Spindle taper | BT50 | BT40 | |
| Main motor power | kw | 11/15 | |
| X/Y/Z guide rail form | 3 axis hard rail | ||
| positioning accuracy | mm | 0.02/0.016/0.016 | |
| Repeat positioning accuracy | mm | 0.012/0.008/0.008 | |
| Tool magazine capacity(standard/optional) | 16/20 | 16/24 | |
| Max.tool dia.(adjoin/apart) | mm | 152/200 125/150 | 80/130 80/150 |
| Max. tool length | mm | 300 | |
| Max.tool weight | kg | 15 | 7 |
| Machine dimension | mm | 3500x2550x2400 | |
| Machine weight | kg | 6700 | 6500 |
