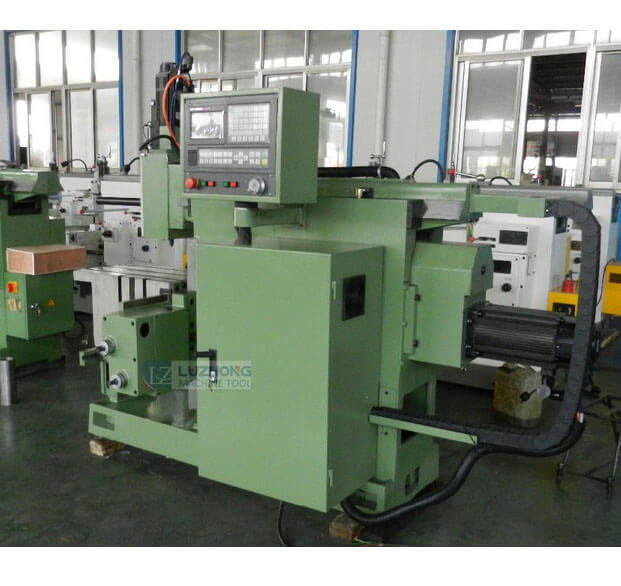

BYK60125 CNC Shaper Machine

Share

Product main technical specifications:

Specifications

Units

BYK60125

BYK60125A

Maximum shaping length

mm

1250

1250

Maximum table cross travel

mm

800

1200

Maximum table vertical  travel

mm

380

380

Bench plane size(length x width )

mm

1250X500

1250X500

Ram from the underside of the work surface

mm

380

400

Turret maximum working stroke

mm

160

160

Turret swivel angle


+/-60

+/-60

The maximum length of the planing knife holder angle of rotation

mm

850

850

Ram working speed

M/min

3-38

3-38

Ram maximum cutting force

KN

28

28

Fast moving speed of table




lateral

M/min

0-6

0-6

Vertical direction

M/min

0-1.5

0-1.5

Table feed range




lateral

min

0.01-5

0.01-5

Vertical direction

mm

0.01-5

0.01-5

On work surface central T-slot width

mm

22+0.052

22+0.052

On work surface T-slot central distance

mm

120

120

Maximum table bearing weight

kg

500

500

The maximum size of the planer

mm

30x45

30x45

Main motor

Kw r/min

7.5 970

7.5 970

Table lateral movement servomotor

Kw r/min

1.5 1500

1.5 1500

Longitudinal movement of servomotors

Kw r/min

1.5 1500

1.5 1500

Mobile turret servo motor

Kw r/min

1.2 2000

1.2 2000

SYYB02 double vane pump flow

L/min

50/100

50/100

Overall dimensions(L*W*H)

mm

4140x1550x1850

4140x1550x1850

Machine weight

kg

4500

4600

Plane of the text piece

mm

0.03

0.03

Plane parallel to the base surface on the specimen

mm

0.04

0.04

 parallel sides of the specimen surface

mm

0.06

0.06

Specimen side of the vertical plane of the base

mm

0.03

0.03

Surface roughness


3.2

3.2
