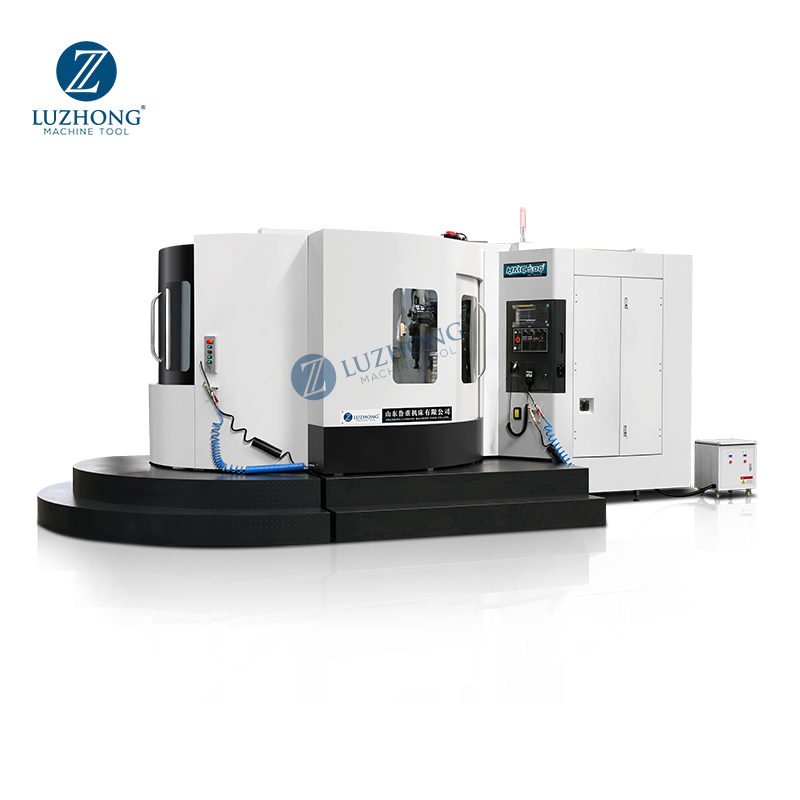

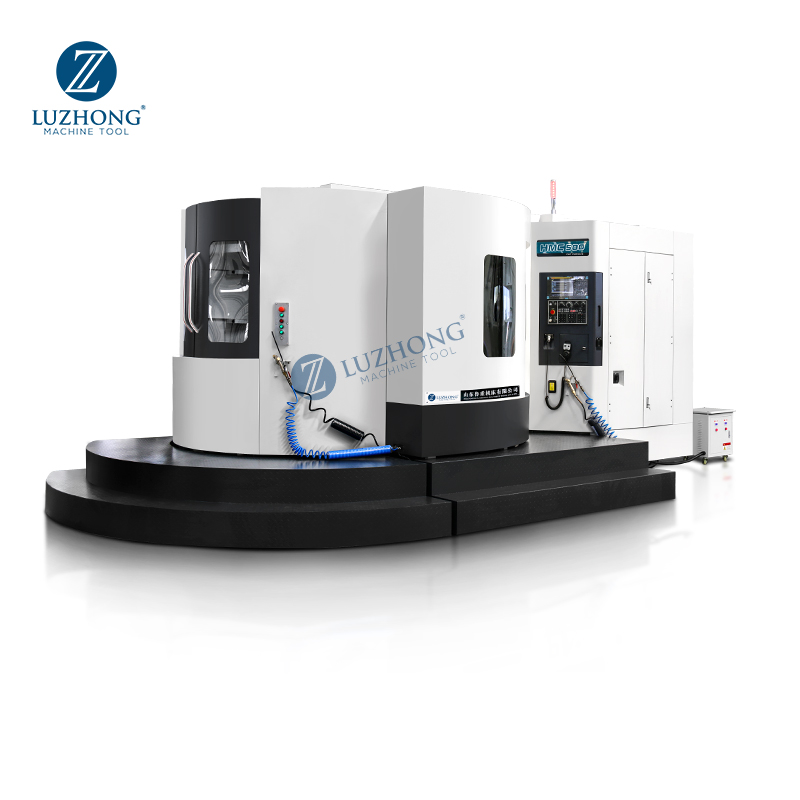

| Specifications | Units | HMC500 |
| Table size | mm | 500×500 |
| X-axis travel | mm | 600 |
| Y-axis travel | mm | 650 |
| Z-axis travel | mm | 520 |
| Spindle nose to table | mm | 180-710 |
| Spindle center to table | mm | |
| Rapid traverse (X/Y/Z) | mm/min | 12000 |
| Feed rate（X/Y） | mm/min | 1-5000 |
| Max. load of worktable | Kg | 800 |
| T-slot (slot number×width×pitch) | mm | 5-14-80 |
| Spindle speed | rpm | 2400/6000 |
| Spindle power | kw | 7.5/11 |
| Spindle taper | BT50 | |
| ATC | 24 | |
| Magazine type | Mechanical hand knife | |
| Maximum tool diameter | mm | Φ127/Φ178 |
| Maximum tool length | mm | 300 |
| Maximum tool weigh | Kg | 15 |
| Tool change time | s | 3 |
| Positioning accuracy | mm | ±0.003 |
| Repeat accuracy | mm | ±0.001 |
| Machine weight | kg | 10000 |
| Dimensions | mm | 2850*2530*2480 |
