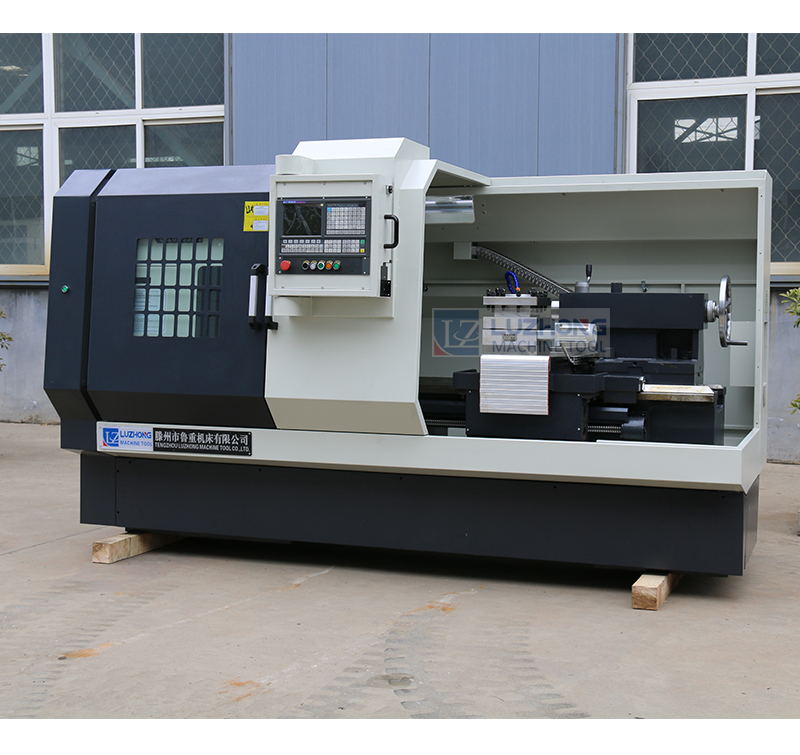

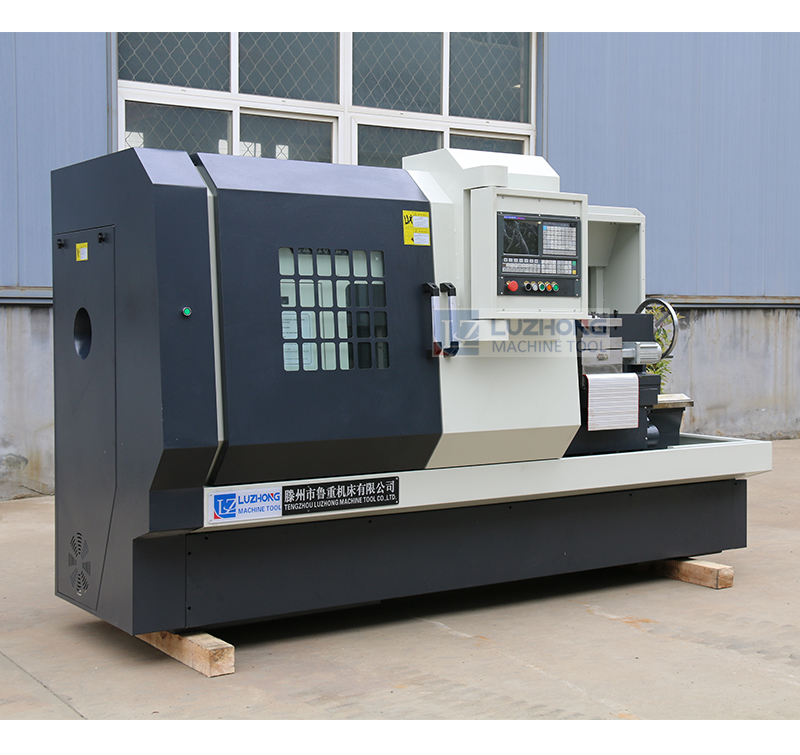

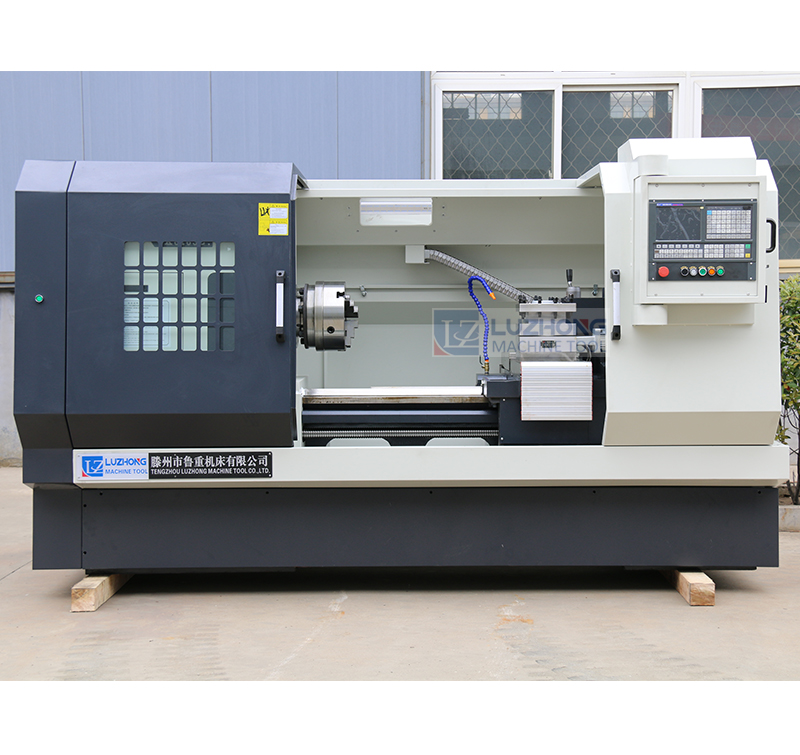

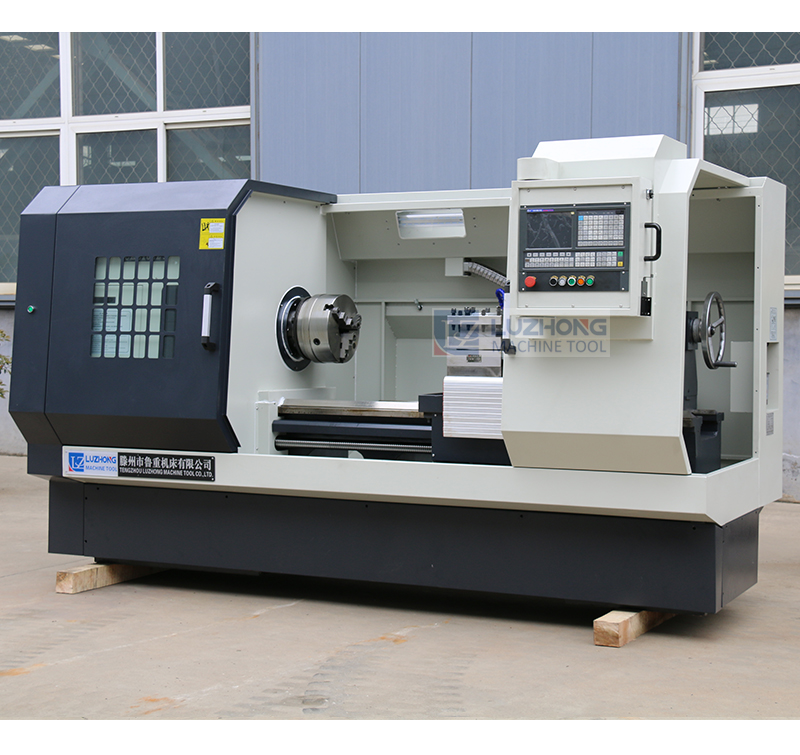

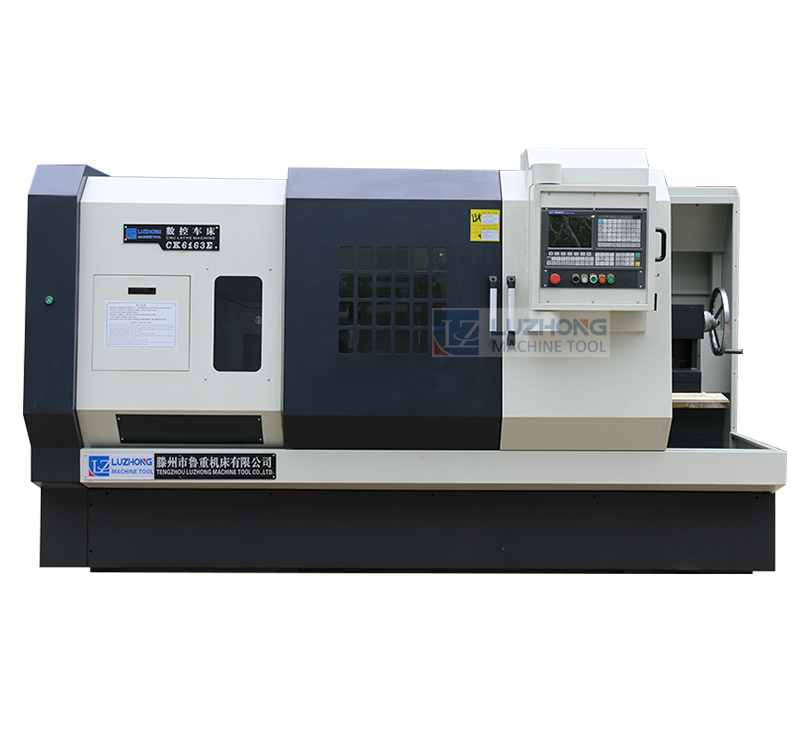

CK6152E CK6165E CNC Lathe Machine

Inquire Now Next Product

Description

Product application:

The machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automaticity,simpler programming and higher accuracy.

Product features:

Higher stability one-piece machine bed

3-gear spindle speed,step-less in gear

Higher rigidity pedestal

Wider layer board

Integrated automatic lubrication system

Product main technical specifications:

Specifications	Unit	CK6152E	CK6165E
Max.swing over bed	mm	Φ530	Φ650
Max.swing over cross slide	mm	Φ280	Φ375
Max.processing length	mm	825/1325	1000/1500/2000/3000
X/Z axis travel	mm	X:330 Z:1000/1500	X:400 Z:1200/1650/2200/3100
Spindle transmission type		3 steps variable speed	3 steps variable speed
Spindle speed steep		stepless	stepless
Spindle speed	rpm	30-150,90-450,315-1600	10-85,40-350,110-850
Spindle nose		A8	C11
Spindle bore	mm	Φ90	Φ105
Spindle taper		Metric 100-1：20	Metric 120-1：20
Spindle motor	kW	7.5	11
Chuck size	mm	Φ250	Φ320
Ball screw dia.and pitch		2506/4010	2505/5010
X/Z axis feed motor torque	N.m	X:7.5 Z:10	X:10 Z:15（30）
X/Z axis rapid traverse	m/min	6/10	4/5
X/Z axis repeatability	mm	±0.005	±0.005
Processing accuracy		IT6-IT7	IT6-IT7
Workpiece surface roughness		Ra1.6	Ra1.6
Tailstock sleeve dia.	mm	Φ75	Φ100
Tailstock sleeve travel	mm	150	250
Tailstock sleeve taper	#	MT5	MT6
Tool post type		4 station electric tool post (optional:6 station turret)	4 station electric tool post (optional:6 station turret)
Cutting tool shape size	mm	25x25	32x32
Guide form		Flat bed	Flat bed
Total power capacity	KVA	12.5	15
Machine dimension(LxWxH)	mm	2570/3070x1550x1710	3200/3700/4200/5200x1800x1900
Net weight	kg	3150/3400	3900/4500/5400
