Linear Guide Rail CNC Lathe Application :
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece,and could also turn various threads,circle arc,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve,electrical appliance,instrument,automobie,motorcycle,bearoings and so on.
Linear guide rail CNC lathe main technical specifications :
SPECIFICATIONS | Units | H46 |
Swing over bed | mm | 460 |
Swing over cross slide | mm | 140 |
Distance between centers | mm | 330 |
Spindle bore | mm | 56 |
Spindle nose type | - | A2-5 |
Spindle speed steps | - | Stepless |
Spindle speed range | rpm | 3500 |

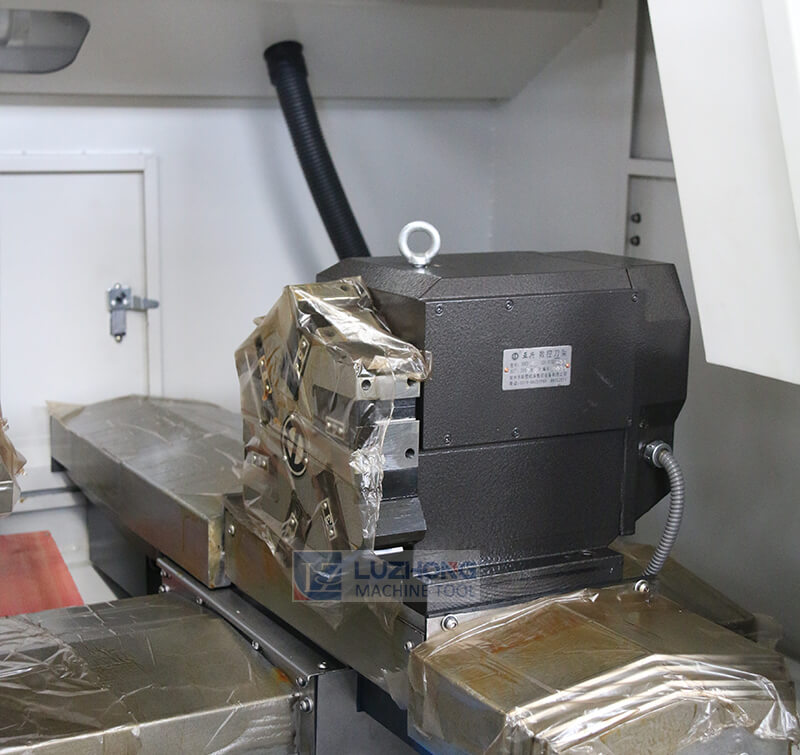

Turret/tool post | - | Gang type |
Tool size | mm | 25 x 25 |
X axis travel | mm | 360 |
Z axis travel | mm | 330 |
X axis rapid traverse | mm/min | 15000 |
Z axis rapid traverse | mm/min | 15000 |
Main spindle motor | kw | 5.5 |
Guide rail type | - | Linear rail |
Machine weight | kg | 2200 |
Overall dimension | mm | 2300x1800x1600 |
