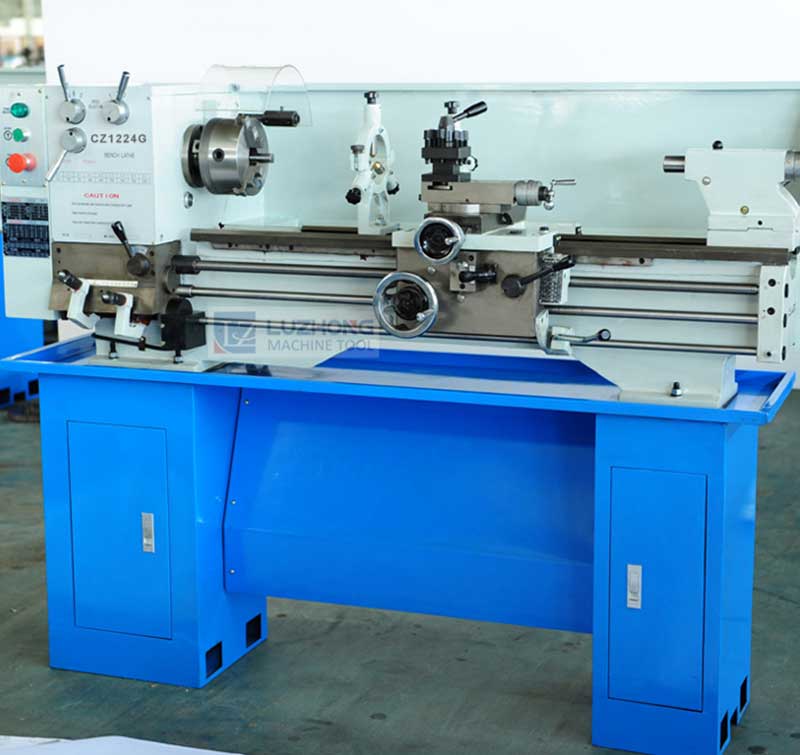

CZ1224G CZ1324G Lathe Machine

Inquire Now Next Product

Description

The main performance characteristics:

1.Engineered from high grade castings

2.V way bed ways induction hardened and ground

3.Gap bed

4.Cross and longitudinal interlocking feed, enough safety

5.Inching switch for test running

6.Metric/Imperial threading available

7.Precise gear-driven headstock

Product main technical parameters:

Specifications		CZ1224 G	CZ1324G
Swing over bed	mm	305	330
Swing over carriage	mm	173	195
Swing over gap	mm	440	465
Width of bed-way	mm	182
Distance between centers	mm	530
Spindle taper		MT5
Spindle bore	mm	38
Step of speed		9
Range of speed	rpm	64-1500
Metric thread	mm	Closed box:11kinds(0.5~43.5)
		Norton box:15kinds(0.25~47.5)
Inch thread	T.P.I	Closed box:14kinds(7-1/2~48)
		Norton box:40kinds(4~112)
Range of feed amount	Mm/r	Closed box:0.051~0.303(0.002’’-0.012’’)
		Norton box:0.12~0.42(0.0047’’-0.0165’’)
Diameter of lead screw	mm	22(7/8’’)
Pitch of lead screw		3mm or 8 T.P.I
Saddle travel	mm	510
Cross travel	mm	150
Compound travel	mm	85
Barrel travel	mm	95
Barrel diameter	mm	32
Taper of center	mm	MT3
Motor power	Kw	1.1(1.5HP)
Motor for coolant system’s power	Kw	0.04(0.055HP)
Machine(L×W×H)	mm	1420x750x760
Stand (left)(L×W×H)	mm	400x370x700
Stand (right)(L×W×H)	mm	300x370x700
Machine	Kg	380/430
