Product main features：
Higher accuracy Taiwan linear guideways
Higher speed spindle unit,optional homemade spindle
Higher rigidity cast iron
Integrated automatic lubrication

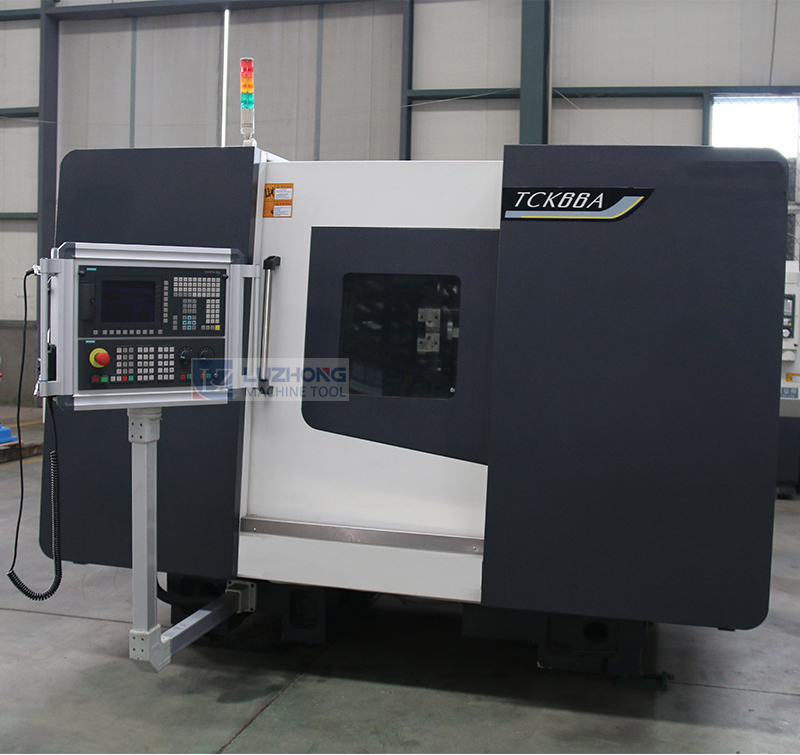

One-piece casting slant bed cnc lathe
Product main technical specification：
Specification | Unit | TCK66A |
Max.swing over bed | mm | 660 |
Max.swing over cross slide | mm | 400 |
Max.workpiece length | mm | 600 |
Spindle unit | mm | 260 |

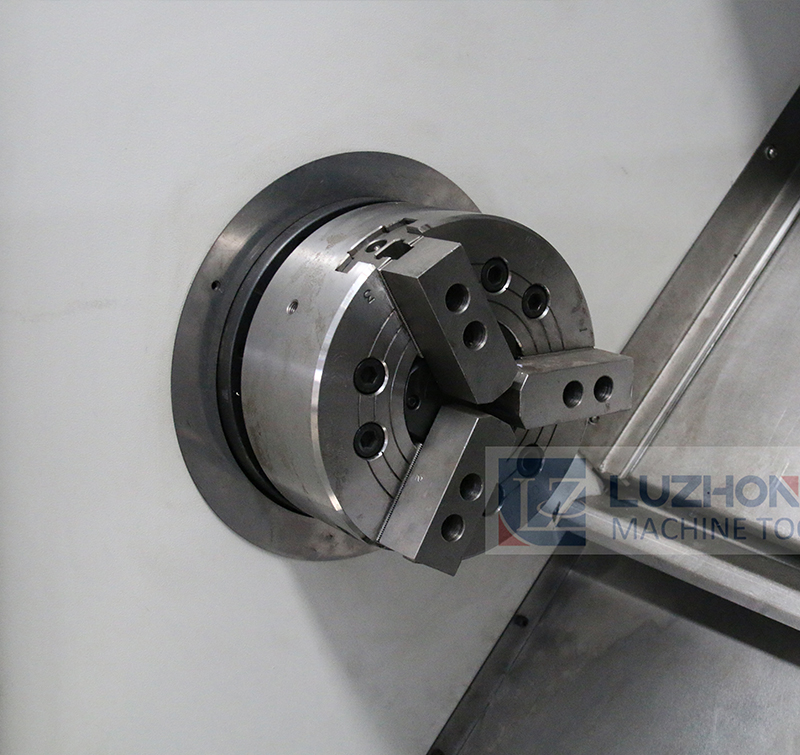

The spindle nose(optional chuck) | A2-8 | |
The spindle motor power | kw | 11 |
Max.spindle speeds | rpm | 2800 |
Spindle bore | mm | Φ85 |
Bar capacity | mm | 75 |
The x/z axis screw specifications | 4010/4010 | |
The x axis limit stroke | mm | 280 |
The z axis limit stroke | mm | 600 |
The x axis motor torque | N.m | 10 |
The z axis motor torque | N.m | 10 |
X/z axis repeat position accuracy | mm | +/-0.003 |

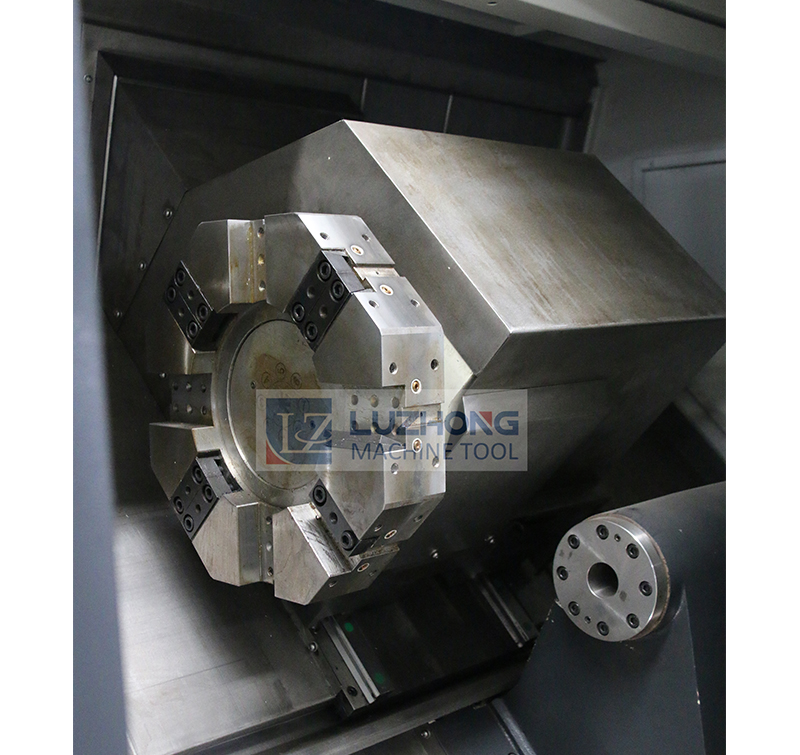

Tool turret (optional) | mm | 125-8T |
Turret center height dimensions | 125 | |
Hydraulic quill dia. | mm | 100 |
Hydraulic quill taper | MT5 | |
Hydraulic tailstock travel | mm | 500 |
Machine dimensions(L*W*H) | mm | 3500*2000*2100 |
N.W. | kg | 4500 |
