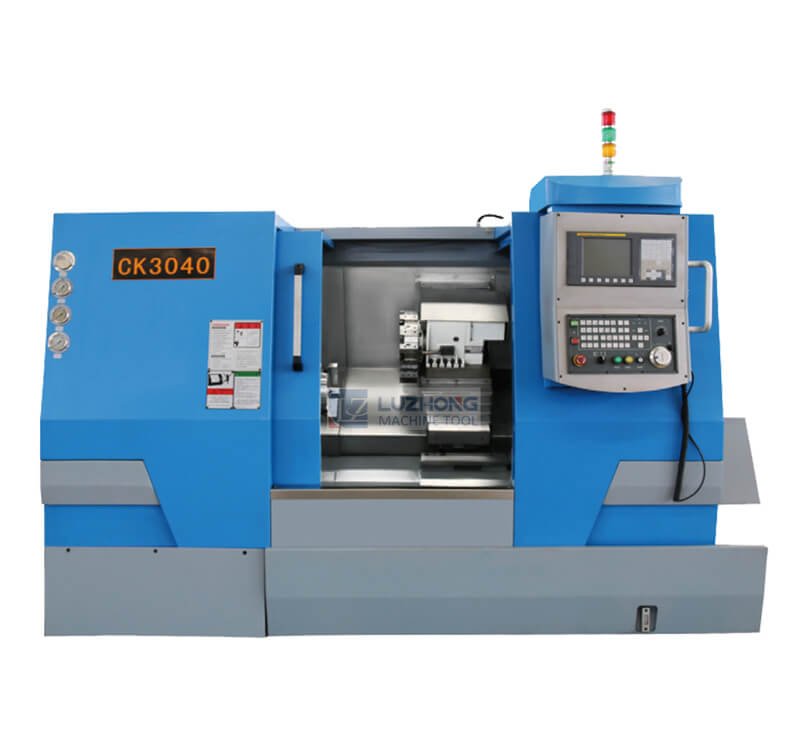

SCK3040 SCK3040L Slant Bed CNC Lathe

Inquire Now Next Product

Description

Product features:

SCK series CNC lathe is designed with high strength,rigidity and with advanced machine structure,defense,and security.The machine adopt the high rigidity cast iron,base and monolithic structure,high precision through-hole structure,vibration resistance designed and high range spindle motor.The bearings and feeding screw adopt the world famous brand,equipped with multi-position tools post,tools are easily changed and changed fast with high precision .CNC system can adopt FANUC 0i-TD,FANUC 0i-Mate TD,SIMENSE 810D,SIMENSE820D,DASEN 3i,and other brand can also be chosen,the hydraulic parts,lubrication parts,chuck adopt the high quality productions well.The outlook is designed well,working panel can be easily operated,full cover.Comparing with other same type,our product owns higher precision and performance and big power.

Product main technical specifications：

Specification	Units	SCK6040	SCK3040	SCK3040L	SCK4558
Bed incline	°	60	30	30	45
Max.workpiece length	mm	300	580	900	960
Culting capacity over bed	mm	φ200	φ400	φ400	φ360
Culting capacity over support	mm	φ400	φ450	φ450	φ580
Chuck size		A2-5	A2-6	A2-8	A2-8
Spindle motor power	kw	7.5	7.5	7.5	15
spindle speeds	rpm	60-5000	4500	3500	100-2600
Spindle bore	mm	φ55	φ62	φ72	φ87
Dia.of bar through spindle bore	mm	φ40	φ50	φ60	φ70
Rapid feed speed	m/min	20	18	18	15
X travel	mm	400	210	230	350
Z travel	mm	320	600	900	960
Tailstock sleeve diameter	mm	-	65	65	100
Tails stock sleeve travel	mm	-	100	100	120
Tail stock travel	mm	-	450	780	1000
Tail stock taper	-	-	MT4	MT4	MT5
Positioning accuracy	mm	±0.008（X）±0.011（Z）	±0.008（X）±0.011（Z）	±0.008（X）±0.011（Z）	±0.008（X）±0.011（Z）
Repositioning accuracy	mm	±0.003（X）±0.005（Z）	±0.003（X）±0.005（Z）	±0.003（X）±0.005（Z）	±0.003（X）±0.005（Z）
Machine dimensions(LWH)	mm	2200x1750x1880	2200x1750x1880	2200x1750x1880	4200x2000x2000
Weight	T	2.2	2.5/2.8	2.5/2.8	6
