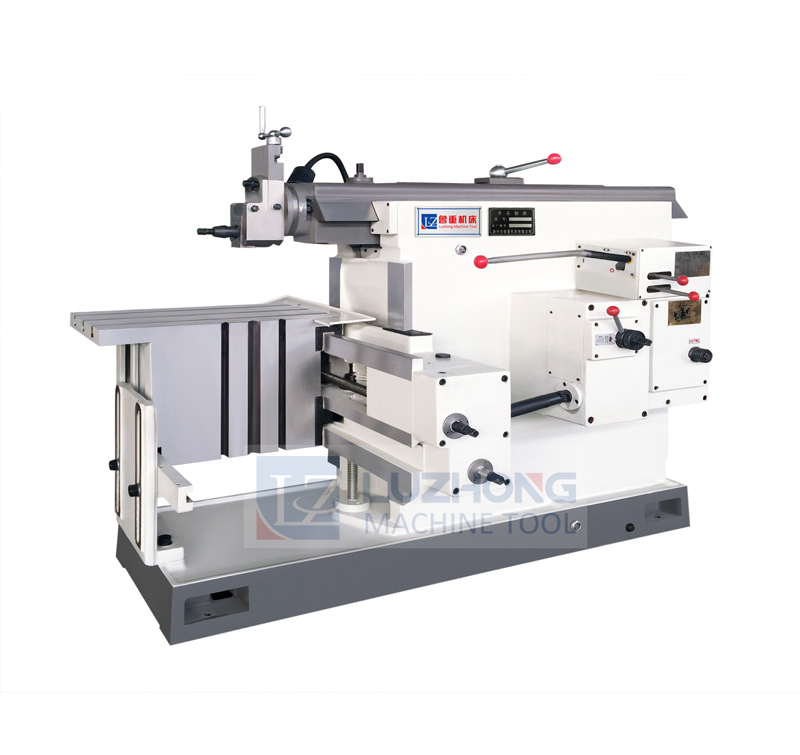

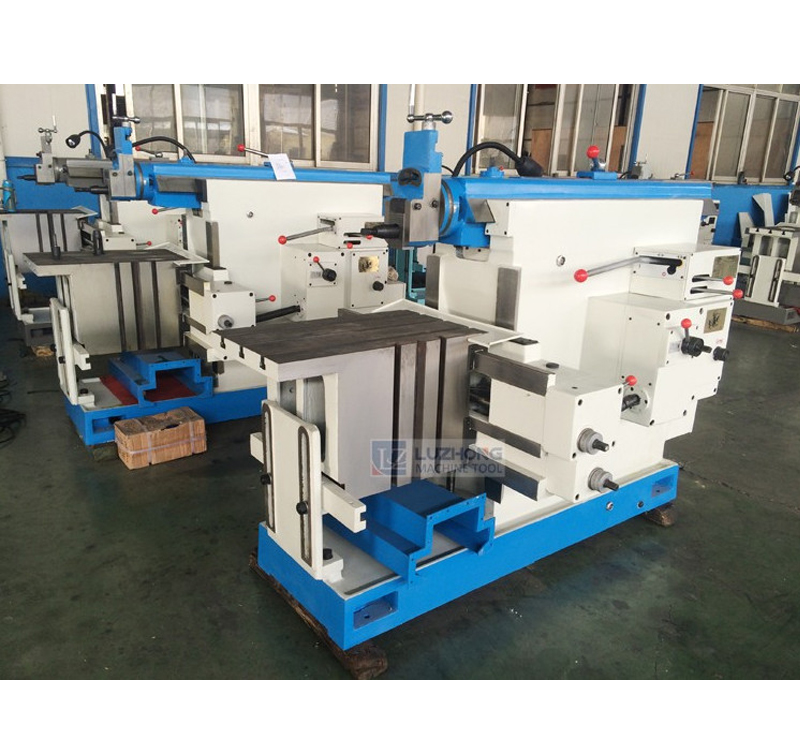

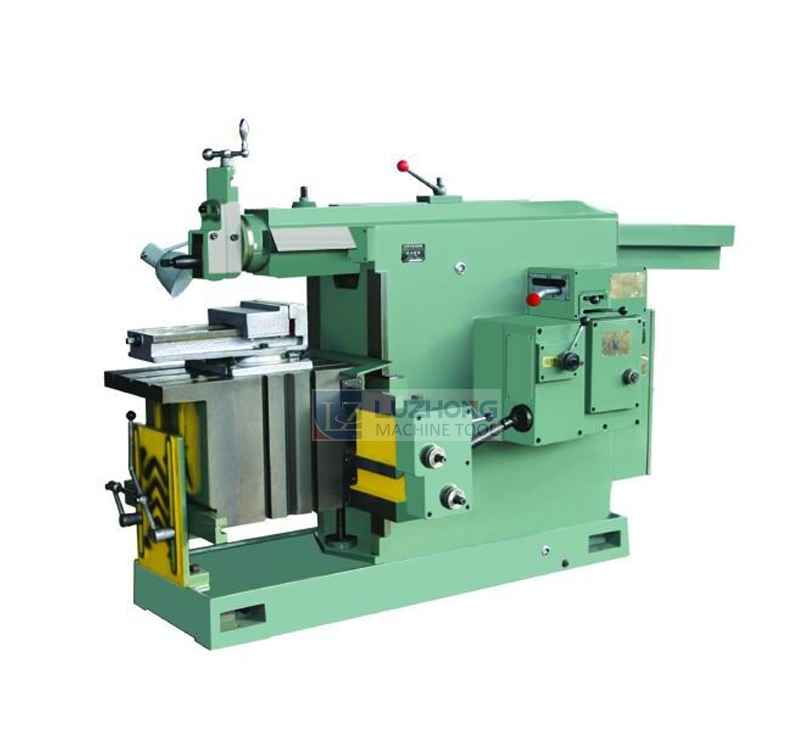

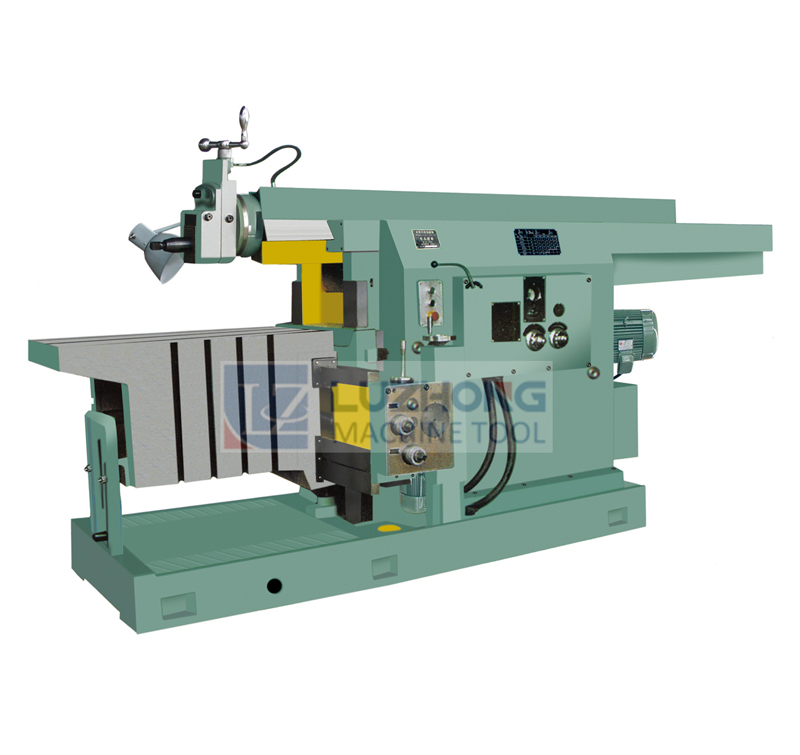

BC6050 Metal Shaper Machine

Share

Product main technical specifications

Specifications

Units

BC6050

Maximum shaping length

mm

500

Max.range of the horizontal movement of the table

mm

370

Max.distance between he ram bottom and table

mm

525

Max.length of the vertical movement of table

mm

270

Dimension of table top(L*W)

mm

400X360

Travel of tool head

mm

120

Number of ram strokes per minute

Times min

14-80

Swivel of tool head

°

±60

Maximum size of tool shank(W*T)

mm

20X30

Range of table feed

Horizontal 12 steps

mm

0.4-5.0

vertical 12 steps

mm

0.08-1.0

Width of the T-slot for center positioning

mm

18

Main motor power

KW

3

Overall dimension(L*W*H)

mm

2000X1250X1400

N.w./G.W

kg

1650/1760
