  • ZX6350D Drilling and Milling Machine

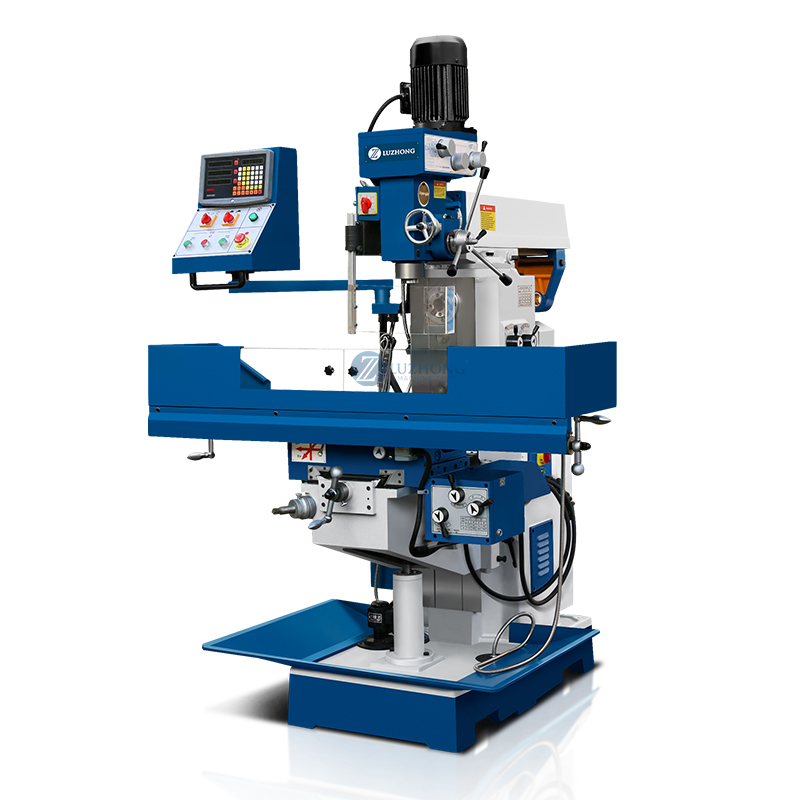

ZX6350D Drilling and Milling Machine

Share

The main performance characteristics

1.Gear transmission for vertical/hozizontal milling head

2.X/Y axis auto feed,Z axis manual feed

3.Headstock swivel +/-45°

4.Guide way with sparking quenching

Product main technical parameters:



SpecificationsUnitsZX6350D
Table  sizemm1120x280
T Slot number/width/pitchmm5/14/50
Longitudinal travelmm630
Cross travelmm240
Vertical travelmm430
Vertical milling capacitymm32
Face milling capacitymm120
Drilling capacitymm50
Longitudinal feeds rangeMm/min15.1-266.5 6steps
Cross feeds rangeMm/min15.1-266.5 6steps
Vertical milling spindle travelmm120
Spindle nose to table surfacemm100-530
Travel of movable armmm360
Vertical milling spindle taper
MT4
Horizontal milling spindle taper
MT4
Vertical milling spindle speedsR/min115-1750 8 steps
Horizontal milling spindle speedsR/min32-1320 12 steps
Vertical milling motorkw1.5/0.85
Main motorkw2.0/2.4
Overall dimensionsmm1400x1300x2100
Net weightKg1300
