CK5112B CNC Vertical Lathe Machine

Share

The CNC Vertical Lathe Machine features:

1. This vertical CNC lathe is a advanced equipment of high performance, widely technology range, high production efficiency. It lathe is apply to machining of all industries. Rough and finish machining of insideoutside cylindrical surface, circular conical surface, end face, grooving, arc surface, sorts of curve face and thread

2. Worktable main spindle adopts high precision and adjustable radial clearance biserial short cylindrical roller bearing to centering to centering. Axial direction adopts CC hydrostatic guideway, worktable have the features of high running accuracy, big bearing capacity, small thermal deformation.

3. The lathe feed adopts AC servo motor, ball screw for drive. Rail head of cross beam equipped with close shield, increase the safety and the amenity

4. The lathe feed adopts AC motor drive, 16 steps main spindle speed change mechanism and realize the worktable range of speed

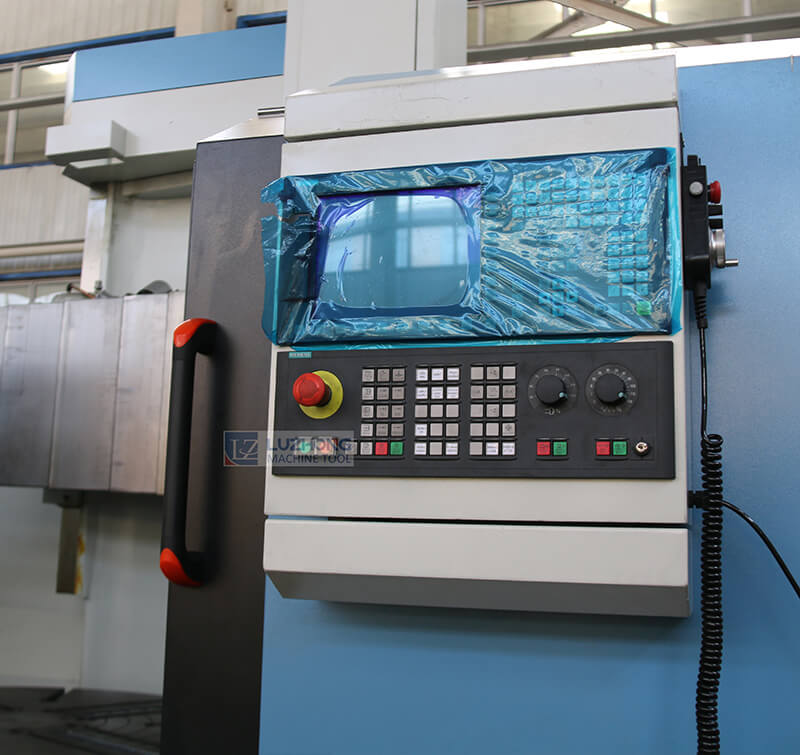

5. CNC system can select import or domestic according to user needs, CK51A series not have cover housing, CK51B series have cover housing, chip removal and cooling liquid recovery device

  6.Vertical column, cross beam guideway all use high-frequnency, quenching, and the quenching hardness is HRC48-55

Vertical CNC Lathe Machine Technical Specifications

SpecificationUNITCK5108A/B*H/2
Max. turningDiameterMm800
Table diameterMm720
Max. height of workpiece  Mm800
Max. weight of workpiece  T2
Max. torqueOf tableKN.m20
Range of table speedsr/min10-315
Max. cutting force of rail headKN18
Swivel of rail head

Range of feed ratesMm/min0.1-500
Horizontal travel of railheadMm570
Ram travel of rail headMm650
Rapid traverse of tool headMm/min4000
Elevating speed of cross railMm/min440
Height of tool bar sectionMm30*470
Power of main motorKW22
Overall dimensionsMm2080*1820*2730
3580*2300*2730
Weight of machinet7.2/8.5
